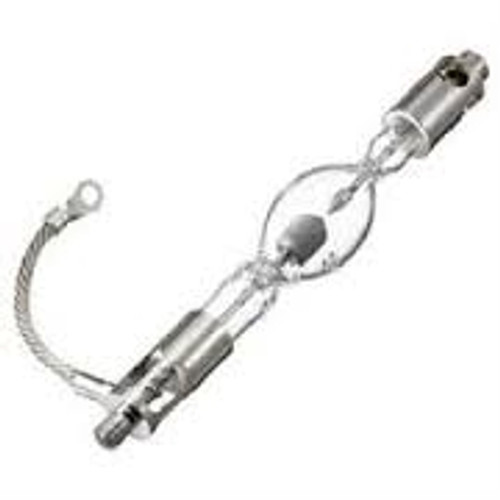

Ushio DXL-40SCN 5002170 $1072.00 Each. NEC projectors NC1600C/2000C.
USHIO's DXL series of Xenon lamps have been developed as the preferred light sources for NEC digital cinema projectors, providing high stability and high reliability. These high-luminance light sources are optimized to meet the increased demands of digital projection and 3D exhibition standards.
USHIO's DXL series are officially approved and recommended for use in NEC digital cinema projectors.
USHIO’s DXL series of digital xenon lamps achieve the highest performance for digital cinema projection. Digital cinema projectors have a more complex optical system than that of film projectors and require lamps with much higher brightness and a more stable arc. USHIO’s DXL series are 20-50% brighter than that of standard film lamps of the same wattages. DXL lamps are optimized to meet technical standards especially for digital 3-D screenings.
| NEC PROJECTOR | Ordering Code |
Lamp | Wattage Max. / Min. | Current Max. / Min. | Total Projected Lumens | 100% Warranty Hours** |
|---|---|---|---|---|---|---|
| NC1200C NC1600C NC2000C |
5002267 | DXL - 12SN | 1200 / 840 | 75 / 35 | 4400 | 3000 |
| 5002268 | DXL - 15SN | 1500 / 1050 | 80 / 40 | 7100 | 3000 | |
| 5002168 | DXL - 20SN3 | 2000 / 1400 | 85 / 50 | 9700 | 2400 | |
| NC1500C | 5002169 | DXL - 30SN | 3000 / 2100 | 110 / 70 | 12800 | 1500 |
| NC1600C NC2000C |
5002270 | DXL - 30SN2 | 3000 / 2100 | 125 / 65 | 11800 | 1200 |
| NC1600C NC2000C |
5002170 | DXL - 40SCN | 4000 / 2800 | 138 / 83 | 12700 | 1500 |
| 5002178 | DXL - 40SN2 | 4000 / 2800 | 138 / 83 | 15000 | 1000 | |
| 5002171 | DXL - 40SN | 4000 / 2800 | 138 / 83 | 18300 | 650 | |
| NC3240S - 4kW | 5002276 | DXL-12SN2 | 1200 / 840 | 75 / 35 | 5600 | 3000 |
| 5002277 | DXL-15SN2 | 1500 / 1050 | 80 / 40 | 7600 | 3000 | |
|
NC2500S |
5002269 5002278 5002229 5002228 5002227 |
DXL-21SN3 DXL-31SN2 DXL-41SCN DXL-41SN2 DXL-41SN |
2000 / 1400 3000 /2100 4000 / 2800 4000 / 2800 4000 / 2800 |
90 / 50 125 / 65 138 / 83 138 / 83 138 / 83 |
11800 15400 16000 20300 24000 |
2400 1200 1500 1000 650 |
| NC2500S NC3200S NC3240S - 7kW |
5002273 | DXL - 45SN/L* | 4500 / 3150 | 158 / 95 | 21400 | 1200 |
| 5002274 | DXL - 60SN/L* | 6000 / 4200 | 167 / 105 | 26000 | 800 | |
| 5002174 | DXL - 70SN | 7000 / 4900 | 180 / 115 | 33000 | 300 | |
* - L-Series
**USHIO’s stated 100% warranty hours may differ from the average lifetime hours
